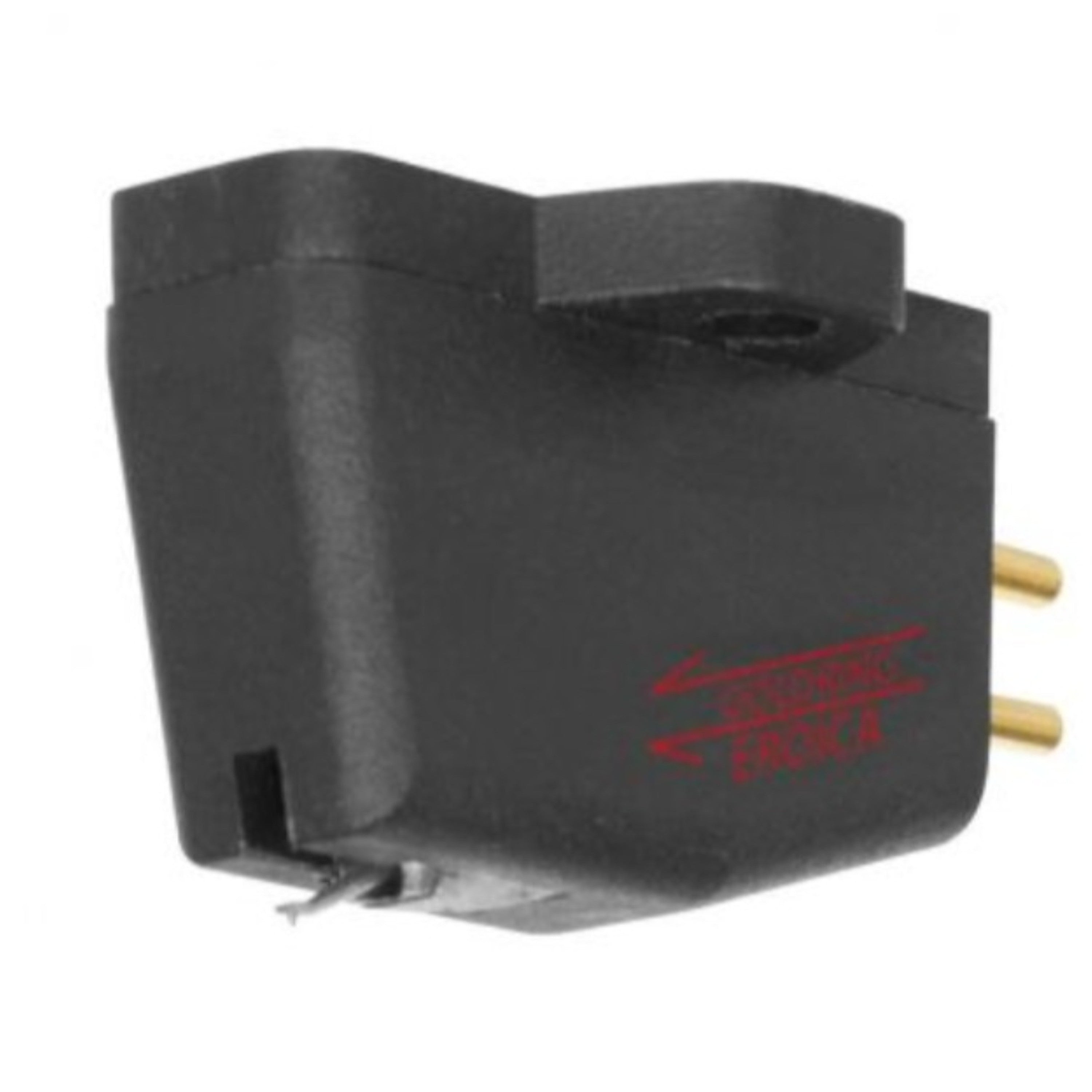

Goldring Eroica H MC Cartidge
The Eroica H is a true audiophile moving-coil cartridge designed to be used with any type of phono input. It features the famous Gyger II diamond stylus profile, a nude, fine-line elliptical type with a 6 µm lesser radius, which gives smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound.
To take proper advantage of this, the pick-up coils are hand-wound on a pure iron armature and suspended in a magnetic circuit of advanced design, featuring low mass and powerful rare earth magnets. The high output Eroica H offers an exceptional standard of performance and reliability and can be used with any amplifier which features a standard 47 kΩ MM phono input.
Goldring Eroica H MC
Write a review
|
Ask a question
- £495.00
- £495.00
- Unit price
- per
Goldring Eroica H MC Cartidge
The Eroica H is a true audiophile moving-coil cartridge designed to be used with any type of phono input. It features the famous Gyger II diamond stylus profile, a nude, fine-line elliptical type with a 6 µm lesser radius, which gives smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound.
To take proper advantage of this, the pick-up coils are hand-wound on a pure iron armature and suspended in a magnetic circuit of advanced design, featuring low mass and powerful rare earth magnets. The high output Eroica H offers an exceptional standard of performance and reliability and can be used with any amplifier which features a standard 47 kΩ MM phono input.
| Specification | Details |
|---|---|
| Frequency Response | 20 Hz - 22 kHz ± 3 dB |
| Channel Balance | within 1 dB @ 1 kHz |
| Channel Separation | better than 25 dB @ 1 kHz |
| Sensitivity | 2.5 mV ± 1 dB, 1 kHz @ 5 cm/sec |
| Static Compliance | 18 mm/N |
| Equivalent Tip Mass | 0.6 mg |
| Vertical Tracking Angle | 24 ° |
| Stylus Radius | Gyger II |
| Stylus Type | Non-Replaceable |
| Load Resistance | 47 kΩ |
| Load Capacitance | 100 - 500 pF |
| Internal Inductance | 0.2 mH |
| Internal Resistance | 77 Ω |
| Cartridge Mass | 5.5 g |
| Cartridge Mass (inc. fixings) | 6.6 g |
| Fixing Centre | 0.5 " (12.7 mm) |
| Playing Weight | 1.5 - 2.0 g (1.7 g nom.) |
