iBasso DC07 Pro Balanced Dongle DAC and Amp

The IBAsso DC07 Pro: A Masterpiece Dongle by iBasso. The DC07Pro dongle represents the pinnacle of iBasso's expertise in audio technology, merging design elements from their renowned audio players. With exceptionally low Total Harmonic Distortion plus Noise (THD+N) at just 0.000098%, the DC07Pro sets a new standard in audio fidelity. Enjoy an elevated listening experience with enhanced dynamic range and output power.

Advanced FPGA System Controller
At the heart of the DC07Pro is iBasso's proprietary FPGA technology. This in-house developed system controller integrates sophisticated audio algorithms, ensuring precise signal regeneration and clock synchronization. The FPGA generates ultra-low jitter clocks for both the DAC and USB receiver, significantly reducing clock jitter from the USB bus and providing pristine audio quality.

Quad CS43131 Flagship DAC Array
The DC07Pro is equipped with four Cirrus Logic CS43131 flagship DAC chips, working in harmony with iBasso's exclusive FPGA technology. This powerhouse combination achieves an impressive -120.2dB THD+N, and supports high-resolution formats up to DSD512 and PCM 32bit/768kHz, delivering unparalleled audio clarity and detail.

Exceptional Power Efficiency
Featuring a synchronous DC-DC converter with an outstanding 94% power conversion efficiency, the DC07Pro operates at just 80mA, making it 40% more efficient than its predecessor, the DC04Pro, while boosting output power by 82%. The dedicated ultra-low noise LDO power supply for analog circuits, with a PSRR of up to 100dB, ensures a pure and stable power source for superior sound.

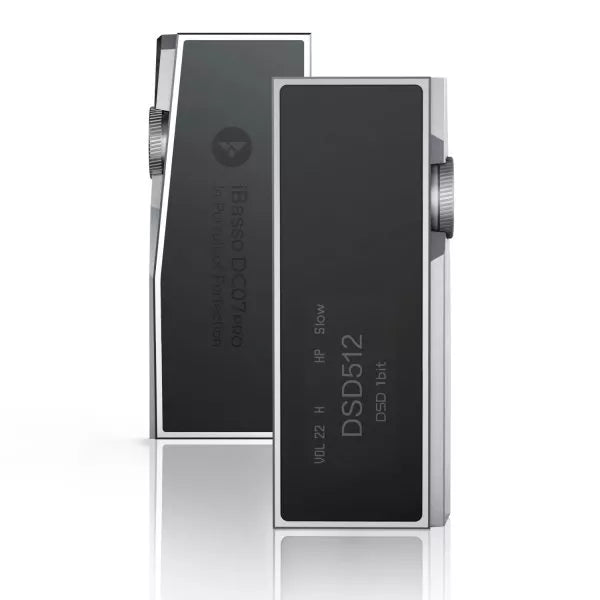

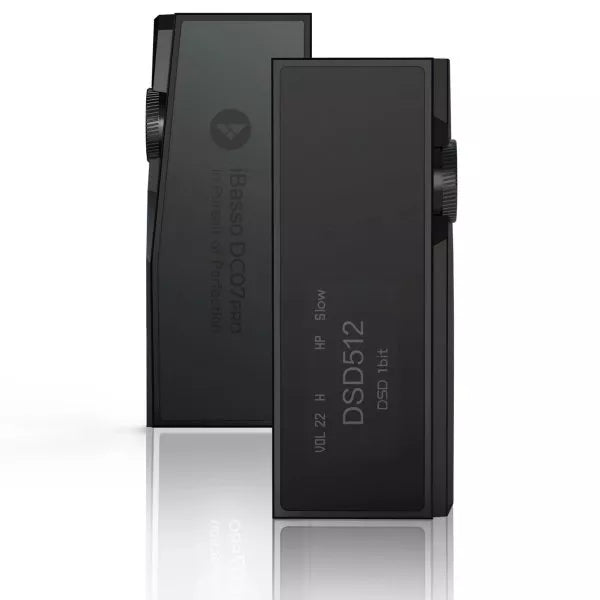

User-Friendly OLED Display and Controls
The DC07Pro boasts a 0.96" OLED screen and an ALPS encoder, providing a convenient and intuitive user interface. Adjust volume, set digital filters, and more with a simple rotation and press of the multi-function knob. Additionally, the iBasso UAC Android APK app offers comprehensive control over settings via your Android device.

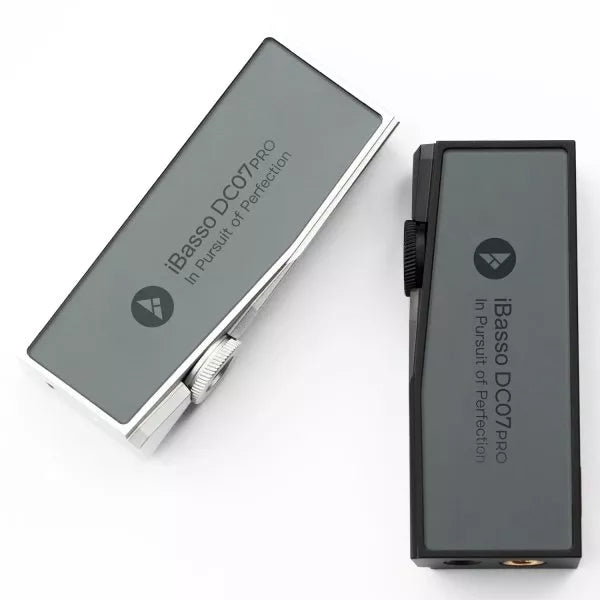

Luxurious Design
Crafted from CNC machined aluminum, the DC07Pro features a sophisticated design reminiscent of high-end Digital Audio Players (DAPs). The front is adorned with a sleek OLED screen, while the back is finished with tempered glass. A strategically placed side knob adds both functionality and aesthetic appeal, exuding luxury and precision.

High-Resolution SPDIF Output
The DC07Pro supports SPDIF output up to 32bit/768kHz, transforming your smartphone into a premium SPDIF transport device, capable of delivering high-resolution audio to your external systems.

Optimized for iPhone Use
With a low power consumption of just 80mA, the DC07Pro is fully compatible with iPhones, avoiding the common issue of forced shutdown due to high power draw. The multi-function knob and OLED screen enable quick and easy adjustments without needing any additional app on iOS, allowing you to enjoy the full capabilities of the DC07Pro seamlessly.

Experience audio excellence with the iBasso DC07Pro—a masterpiece dongle designed for audiophiles who demand the very best in sound quality and design.
