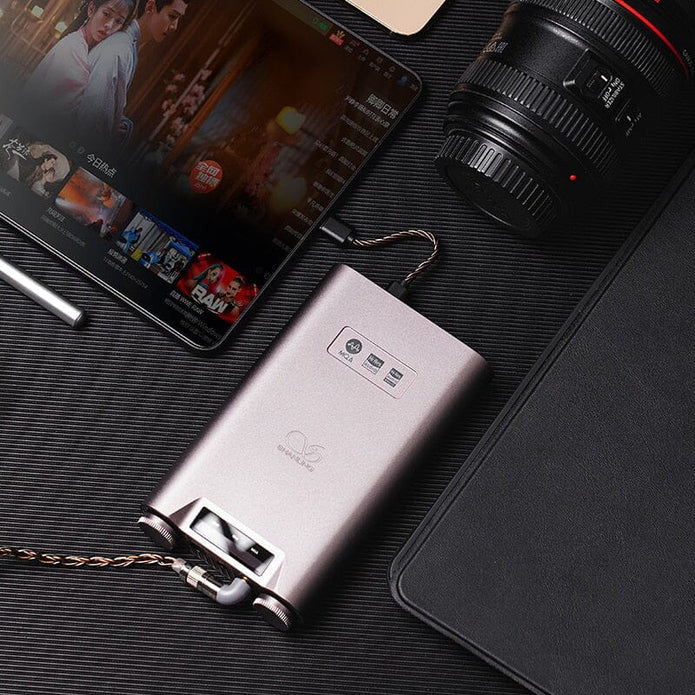

The Shanling H7 amplifier is the perfect choice for discerning audiophiles who demand uncompromising performance and versatility. At the heart of the H7 amplifier is the new flagship AK4499EX DAC chip from AKM, paired with its matching AK4191 modulator. This combination provides an exceptional level of clarity and detail, ensuring that you hear every nuance and subtlety in your music.
In addition to its impressive DAC chip, the H7 amplifier also features an extra powerful amplifier that can deliver up to 1.2W at 32 Ohm, ensuring that even the most demanding headphones are driven to their full potential. The H7 amplifier also features a range of headphone outputs, including 3.5mm, 4.4mm, and 6.35mm, as well as a rear RCA output for use with speakers or other audio equipment.
The H7 amplifier is also designed for versatility, with a range of connectivity options that cater to all your audio needs. It features an XMOS USB input that supports Hi-Res playback, including MQA, for the highest quality audio streaming from your computer. It also has a combined input for coaxial and optical SPDIF, enabling you to connect a wide range of audio sources.
For added convenience, the H7 amplifier also comes with a Bluetooth receiver module with LDAC support, allowing you to easily connect your smartphone or other Bluetooth-enabled devices and stream high-quality audio wirelessly. This feature is especially useful when you want to listen to music without being tethered to your device.
Overall, the Shanling H7 amplifier is an exceptional audio amplifier that delivers a powerful, transparent, and accurate sound. With its advanced features, versatile connectivity options, and sleek design, the H7 amplifier is a must-have for any serious audiophile who wants the best possible listening experience.
- New Flagship AK4499EX DAC chip from AKM, with its matching AK4191 Modulator
- Extra powerful amplifier offering up to 1.2W @ 32 Ohm
- 3.5 / 4.4 / 6.35mm headphone outputs and rear RCA
- Xmos USB input supporting Hi-Res playback, including MQA
- Combined input for Coaxial and Optical SPDIF
- Bluetooth receiver module with LDAC support
UNIQUE BUILT-IN PLAYER
And an extra feature is the MicroSD card slot, allowing for direct local playback. Pack your card with all the music files and then simply control it from the Eddict Player app on your Android or iOS phone. You can even run the H7 as a completely independent player, just with limited control.
The Shanling H7 Headphone Amp is the first Shanling audio design built around the new generation of AKM's flagship DAC system. The Shanling H7 combines AK4191EQ Delta-Sigma modulator with AK4499EX DAC, splitting the Digital-to-Analog process between these two chips for improved performance in both do-mains. This unique approach implemented by AKM allows for even better sound quality, pushing ahead of the older AKM AK4499 DAC.
HI-FI GRADE USB & BLUETOOTH 5.0 INPUT
Equipped with a new generation of the highly-acclaimed USB chipset, 3rd-generation XMOS XU316, the Shanling H7 can ensure the top-quality digital input. The 16-core audio solution also provides a stable asynchronous connection for high-fidelity sound and full support for Hi-Res playback of PCM, DSD and MQA files. In addition, the H7 Amplifier features Bluetooth 5.0 input for convenient wireless sound, meaning that it is easy for a connection to users’ phone or tablet.
THREE HEADPHONE OUTPUTS & THREE GAIN LEVELS
H7 utilizes three levels of amplifier gain, assuring an ideal match with a wide range of headphones. The H7 amplifier characterizes the lowest gain for a hiss-free playback with the most sensitive in-ear earphones. Besides, this device features the high and unleash its powerful 1.3W output, feeding even the most demanding audiophile headphones.
LONG-LASTING BATTERY & ADVANCED POWER MANAGEMENT
Utilizing pair of industry standard 18650 batteries, for a combined 6800 mAh capacity, the Shanling H7 equipped with a dedicated PMU chip for advanced power management. This management is conducive to prolonging the battery life for continuous playback and overall improving lifespan of the batteries.
Shanling H7 Advanced Portable Amplifier/DAC/DAP
Write a review
|
Ask a question
- £699.00
- £699.00
- Unit price
- per
The Shanling H7 amplifier is the perfect choice for discerning audiophiles who demand uncompromising performance and versatility. At the heart of the H7 amplifier is the new flagship AK4499EX DAC chip from AKM, paired with its matching AK4191 modulator. This combination provides an exceptional level of clarity and detail, ensuring that you hear every nuance and subtlety in your music.
In addition to its impressive DAC chip, the H7 amplifier also features an extra powerful amplifier that can deliver up to 1.2W at 32 Ohm, ensuring that even the most demanding headphones are driven to their full potential. The H7 amplifier also features a range of headphone outputs, including 3.5mm, 4.4mm, and 6.35mm, as well as a rear RCA output for use with speakers or other audio equipment.
The H7 amplifier is also designed for versatility, with a range of connectivity options that cater to all your audio needs. It features an XMOS USB input that supports Hi-Res playback, including MQA, for the highest quality audio streaming from your computer. It also has a combined input for coaxial and optical SPDIF, enabling you to connect a wide range of audio sources.
For added convenience, the H7 amplifier also comes with a Bluetooth receiver module with LDAC support, allowing you to easily connect your smartphone or other Bluetooth-enabled devices and stream high-quality audio wirelessly. This feature is especially useful when you want to listen to music without being tethered to your device.
Overall, the Shanling H7 amplifier is an exceptional audio amplifier that delivers a powerful, transparent, and accurate sound. With its advanced features, versatile connectivity options, and sleek design, the H7 amplifier is a must-have for any serious audiophile who wants the best possible listening experience.
- New Flagship AK4499EX DAC chip from AKM, with its matching AK4191 Modulator
- Extra powerful amplifier offering up to 1.2W @ 32 Ohm
- 3.5 / 4.4 / 6.35mm headphone outputs and rear RCA
- Xmos USB input supporting Hi-Res playback, including MQA
- Combined input for Coaxial and Optical SPDIF
- Bluetooth receiver module with LDAC support
UNIQUE BUILT-IN PLAYER
And an extra feature is the MicroSD card slot, allowing for direct local playback. Pack your card with all the music files and then simply control it from the Eddict Player app on your Android or iOS phone. You can even run the H7 as a completely independent player, just with limited control.
The Shanling H7 Headphone Amp is the first Shanling audio design built around the new generation of AKM's flagship DAC system. The Shanling H7 combines AK4191EQ Delta-Sigma modulator with AK4499EX DAC, splitting the Digital-to-Analog process between these two chips for improved performance in both do-mains. This unique approach implemented by AKM allows for even better sound quality, pushing ahead of the older AKM AK4499 DAC.
HI-FI GRADE USB & BLUETOOTH 5.0 INPUT
Equipped with a new generation of the highly-acclaimed USB chipset, 3rd-generation XMOS XU316, the Shanling H7 can ensure the top-quality digital input. The 16-core audio solution also provides a stable asynchronous connection for high-fidelity sound and full support for Hi-Res playback of PCM, DSD and MQA files. In addition, the H7 Amplifier features Bluetooth 5.0 input for convenient wireless sound, meaning that it is easy for a connection to users’ phone or tablet.
THREE HEADPHONE OUTPUTS & THREE GAIN LEVELS
H7 utilizes three levels of amplifier gain, assuring an ideal match with a wide range of headphones. The H7 amplifier characterizes the lowest gain for a hiss-free playback with the most sensitive in-ear earphones. Besides, this device features the high and unleash its powerful 1.3W output, feeding even the most demanding audiophile headphones.
LONG-LASTING BATTERY & ADVANCED POWER MANAGEMENT
Utilizing pair of industry standard 18650 batteries, for a combined 6800 mAh capacity, the Shanling H7 equipped with a dedicated PMU chip for advanced power management. This management is conducive to prolonging the battery life for continuous playback and overall improving lifespan of the batteries.
| DAC： |
AKM AK4499EX With AKM AK4191EQ |
| Audio Circuit: |
TPA6120A2 / OPA2211 / MUSES8920 |
| USB Input: | XMOS XU316 |
| Platform: | Ingenic X2000 |
| Output Connectors: |
6.35/4.4/3.5mm & RCA |
| Dimensions： |
142 x 85 x 25 mm |
| Weight: | 352.5 g |
| Screen： |
1.44-inch Screen |
| System： |
Open Android 10 |
| Audio formats: |
DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS |
| Hi-Res Support |
：32 bit / 768 kHz, DSD 512, MQA 8x |
| Gain Setting: |
Three Level Setting |
| Storage： |
MicroSD Card Slot, up to 2TB |
| Digital Filters： | 6 Preset Filters |
| Battery: | 2x 18650 |
| Battery Capacity: | 6800 mAh |
| Battery Life: |
Up to 10h SE / 8H BAL |
| Bluetooth |
Bluetooth 5.0 Receiver |
| Bluetooth Codec Support: |
LDAC / AAC / SBC |
| RCA Output | |
| Output Level: | 2.4 Vrms |
| Frequency Response: |
20Hz - 40kHz (-0.2dB) |
| THD+N: | 0.00% |
| Dynamic Range: | 121dB |
| Signal-to-noise: | 121dB |
| Output impedance: | 47KΩ |
|
Single-Ended Output： |
|
| Output Power |
Low Gain： 28mW @32 Ohm |
| Frequency Response： |
20 Hz - 40 KHz (-0.2 dB) |
| THD+N： | 0.00% |
| Channel separation： |
75 dB @ 32 Ohm |
| Dynamic Range： | 121 dB |
| Signal-To-Noise： | 121 dB |
| Noise： |
>113 dB(<1.5 uV)（Low Gain） |
| Output Impedance： | <1 Ohm |
|
Balanced Output： |
|
| Output Power |
Low Gain： 87mW @32 Ohm |
| Frequency Response： |
20 Hz - 40 KHz (-0.2 dB) |
| THD+N： | 0.00% |
| Channel separation： |
115 dB @ 32 Ohm |
| Dynamic Range： | 123 dB |
| Signal-To-Noise： | 123 dB |
| Noise： |
>111 dB(<1.5 uV)（Low Gain） |
| Output Impedance： | <1 Ohm |
- Shanling H7 Flagship AKM DAC Headphone Amplifier
- USB-C Charging Cable
- USB-C to USB-C OTG Cable
- 3.5mm to Coaxial Cable
- Storage Pouch
- User Manual
