The TOPPING L30II Headphone Amplifier is a Ultra-High Performance NFCA modules,uses the same NFCA (Nested Feedback Composite Amplifier) module from flagship A90. Voltage Current hybrid feedback architecture along with UHGF (Ultra High Gain Feedback) technology provides excellent DC and AC performance.
High output current drive capability allows the amp driving low impedance headphones with ease. Ultra-low noise of 0.3uV is miles ahead of the competition, giving an absurdly high dynamic proformance of 141dB and no audible floor noise for the most sensitive IEMs.
The Topping L30II Headphone Amplifier is equipped with three gain settings of -14dB/0dB/16.5dB. A wide range of gain settings lets the L30II easily adapt to all types of headphones from extremely sensitive IEMs to the most power hungry over-ear headphones.
With the improved NFCA modules the Tooping L30II Headphone Amp is not only able to drive the most headphones but it also applies this to its preamplifier with the same high performance. When it is in preamp mode,output impedance is as low as 16ohms, which is widely suitable for various devices.

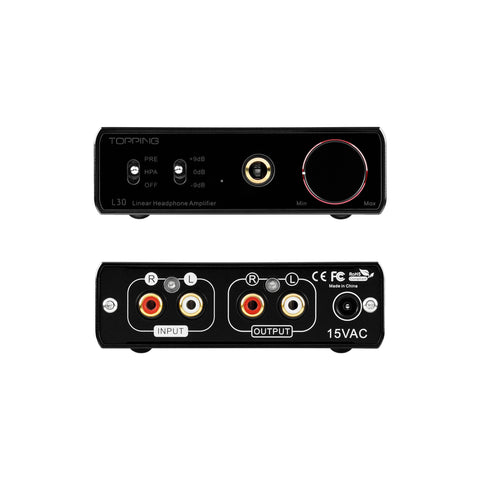

Topping L30 MKII Desktop Headphone Amplifier
Write a review
|
Ask a question
- £149.00
- £149.00
- Unit price
- per
The TOPPING L30II Headphone Amplifier is a Ultra-High Performance NFCA modules,uses the same NFCA (Nested Feedback Composite Amplifier) module from flagship A90. Voltage Current hybrid feedback architecture along with UHGF (Ultra High Gain Feedback) technology provides excellent DC and AC performance.
High output current drive capability allows the amp driving low impedance headphones with ease. Ultra-low noise of 0.3uV is miles ahead of the competition, giving an absurdly high dynamic proformance of 141dB and no audible floor noise for the most sensitive IEMs.
The Topping L30II Headphone Amplifier is equipped with three gain settings of -14dB/0dB/16.5dB. A wide range of gain settings lets the L30II easily adapt to all types of headphones from extremely sensitive IEMs to the most power hungry over-ear headphones.
With the improved NFCA modules the Tooping L30II Headphone Amp is not only able to drive the most headphones but it also applies this to its preamplifier with the same high performance. When it is in preamp mode,output impedance is as low as 16ohms, which is widely suitable for various devices.
| Specification | Details |
|---|---|
| THD+N @ 1kHz, A-Weighting |
< 0.00006% @ 500mW, 32Ω < 0.00005% @ 80mW, 300Ω |
| THD @ 90kBw, 20Hz-20kHz |
< 0.00008% @ 500mW, 32Ω < 0.00007% @ 80mW, 300Ω |
| SNR @ Max Out, 1kHz, A-Weighting | 144dB |
| Dynamic range @ 1kHz, A-Weighting | 144dB |
| Frequency response | 20Hz-40kHz (±0.05dB) |
| Output level |
14Vpp @ G=L 31Vpp @ G=M 37Vpp @ G=H |
| Noise level |
< 0.3µVrms @ G=L < 0.3µVrms @ G=M < 1.4µVrms @ G=H |
| Crosstalk @ 1kHz | -92dB |
| Input sensitivity |
25Vrms @ G=L 11.2Vrms @ G=M 2.0Vrms @ G=H |
| Gain |
-14dB @ G=L 0dB @ G=M 16.5dB @ G=H |
| Output impedance | < 0.1Ω |
| Output power |
2x3500mW @ 16Ω, THD+N < 0.1% 2x2700mW @ 32Ω, THD+N < 0.1% 2x2000mW @ 64Ω, THD+N < 0.1% 2x560mW @ 300Ω, THD+N < 0.1% |
| Load impedance | > 8Ω |
- Remote
- USB cable
- Bluetooth Antenna
- User Manual
- Power Cable*
