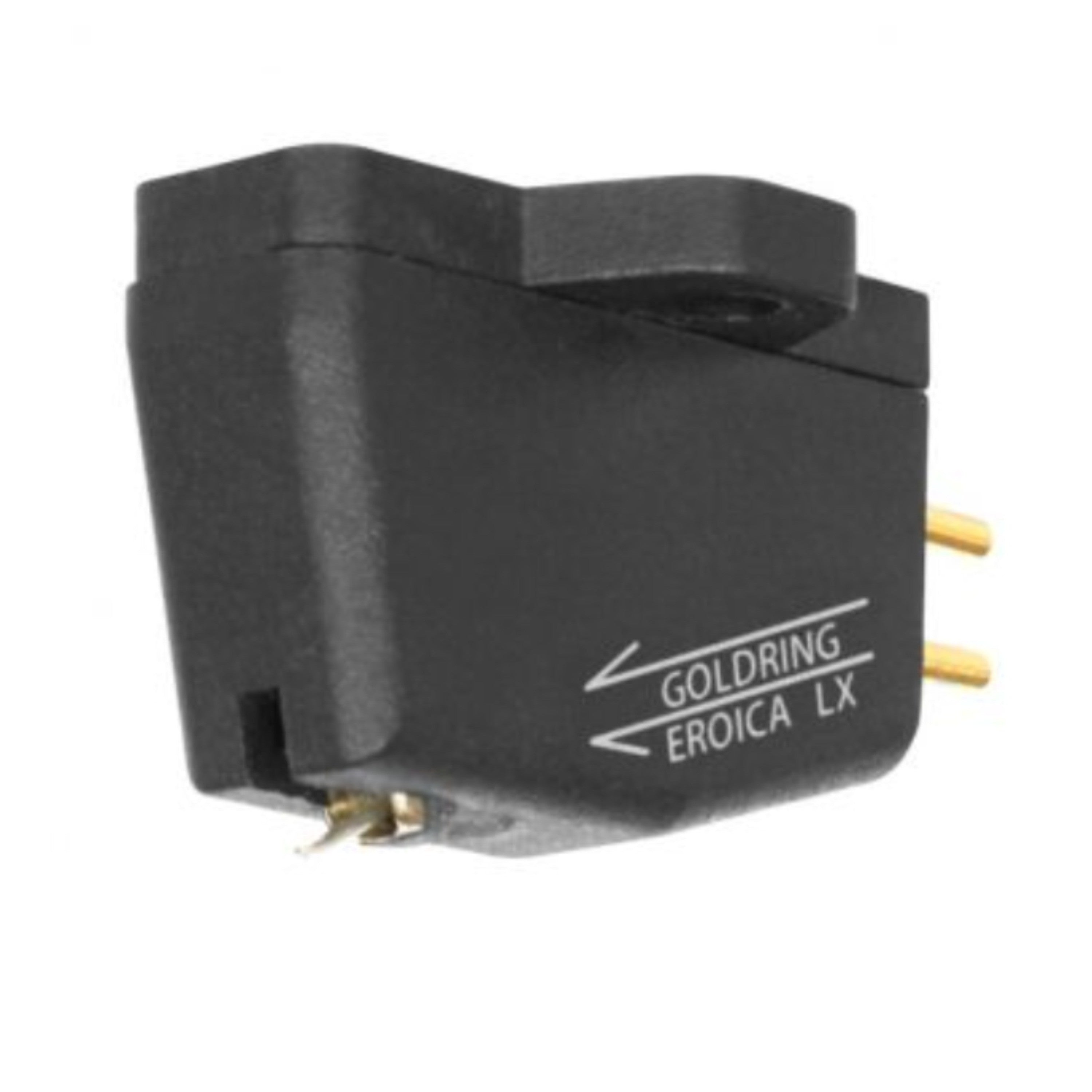

Goldring Eroica LX MC Cartridge
The Eroica LX is a true audiophile moving-coil cartridge featuring the famous Gyger II diamond stylus profile. A nude, fine-line elliptical type with a 6 µm lesser radius, it gives smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound.
To take proper advantage of this, the pick-up coils are hand-wound on a pure iron armature and suspended in a magnetic circuit of advanced design featuring low mass and powerful rare earth magnets. The low output Eroica LX offers an exceptionally high standard of performance and reliability and must be used with an amplifier which features a dedicated moving coil phono input.
Goldring Eroica LX MC
Write a review
|
Ask a question
- £495.00
- £495.00
- Unit price
- per
Goldring Eroica LX MC Cartridge
The Eroica LX is a true audiophile moving-coil cartridge featuring the famous Gyger II diamond stylus profile. A nude, fine-line elliptical type with a 6 µm lesser radius, it gives smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound.
To take proper advantage of this, the pick-up coils are hand-wound on a pure iron armature and suspended in a magnetic circuit of advanced design featuring low mass and powerful rare earth magnets. The low output Eroica LX offers an exceptionally high standard of performance and reliability and must be used with an amplifier which features a dedicated moving coil phono input.
| Specification | Details |
|---|---|
| Frequency Response | 20 Hz - 22 kHz ± 2 dB |
| Channel Balance | within 1 dB @ 1 kHz |
| Channel Separation | better than 25 dB @ 1 kHz |
| Sensitivity | 0.5 mV ± 1dB, 1kHz @ 5 m/s |
| Static Compliance | 18 mm/N |
| Equivalent Tip Mass | 0.35 mg |
| Vertical Tracking Angle | 24 ° |
| Stylus Radius | Gyger II |
| Stylus Type | Non-Replaceable |
| Load Resistance | 100 Ω |
| Load Capacitance | 100 - 1000 pF |
| Internal Inductance | 12 µH |
| Internal Resistance | 8 Ω |
| Cartridge Mass | 5.5 g |
| Cartridge Mass (including fixings) | 6.6 g |
| Fixing Centre | 0.5" (12.7 mm) |
| Playing Weight | 1.5 - 2.0 g (1.7 g nom.) |
